THN 10-3612UIR | TRACO POWER
DC converter, 9-75 VDC, 10 W, 1 output, 12 VDC, 88 % efficiency, THN 10-3612UIR
Unit Price (€ / pc.)
50.1466 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
50.15 € *
Price list
Quantity
Price per unit*
1 pcs.
50.1466 €
10 pcs.
45.1248 €
*incl. VAT plus shipping costs
Subject to prior sale

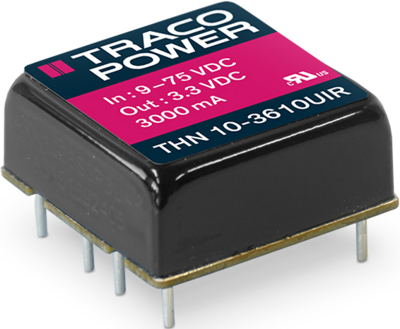

DC/DC Converter, THN 10-3612UIR, TRACO POWER
The THN 10UIR is a high-performance DC/DC converter with an ultra-wide 12:1 input voltage range and a power output of 10 watt. The THN 10UIR comes in a compact, fully encapsulated 1”x1” housing for highest reliability and effective cooling. Thanks to its dedicated holdup capacitor connection, the THN 10UIR meets extended holdup-time requirements without the need for bulky input capacitors. The THN 10UIR is EN 50155 certified for rolling stock applications, EN 61373 certified for resistance against mechanical shock and vibration and EN 45545-2 certified for fire behavior. The THN 10UIR also comes with IEC/EN/UL 62368-1 safety approvals for use in a wide range of demanding industrial applications.
Features
- Dedicated holdup capacitor connection
- Fully encapsulated
- Remote on/off and trim function
- Protection against short-circuit
- Overvoltage and overtemperature
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 25.4 mm | |
| Number of outputs | 1 | |
| efficiency | 88 % | |
| Isolation voltage | 3 kV | |
| Power | 10 W | |
| Output voltage DC | 12 VDC | |
| Output current | 830 mA | |
| Length | 25.4 mm | |
| Height | 10.2 mm | |
| Input voltage AC | 9-75 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
