THL 6-2421WISM | TRACO POWER
DC converter, 9-36 VDC, 6 W, 2 outputs, ±5 VDC, 82 % efficiency, THL 6-2421WISM
Unit Price (€ / pc.)
35.3549 € *
Available in 10 days: 30 pcs. - if ordered today
Total Price:
35.35 € *
Price list
Quantity
Price per unit*
1 pcs.
35.3549 €
10 pcs.
31.8087 €
*incl. VAT plus shipping costs
Subject to prior sale

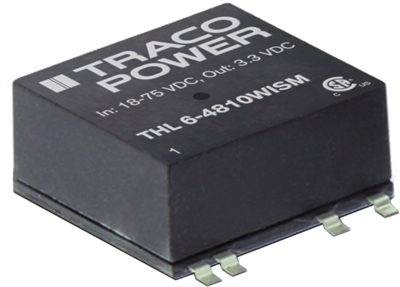

DC/DC converters, Traco THL 6-2421WISM
The THL 6WISM series is a family of compact 6 W dc/dc-converters with 4:1 input voltage ranges. The product is available in SMD-package which is 31% smaller than a standard DIP-24 package. The internal filter to meet EN55022 Class A without external components makes these converters easy to design in. They come with remote On/Off and short circuit protection. THL 6WISM converter is an excellent solution for data- and telecom applications and for instrumentation and industrial electronics.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 2 | |
| Output current | 600 mA | |
| Output voltage DC | ±5 VDC | |
| Input voltage AC | 9-36 VDC | |
| Power | 6 W | |
| efficiency | 82 % | |
| Design | SMD | |
| Isolation voltage | 1.5 kV | |
| Length | 22 mm | |
| Width | 20.3 mm | |
| Height | 10.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
