THL 30-4811WI | TRACO POWER

DC converter, 18-75 VDC, 30 W, 1 output, 5 VDC, 88 % efficiency, THL 30-4811WI

Order No.: 35C1357
EAN: 7613441071770
MPN:
THL 30-4811WI
Series: THL 30WI
THL 30-4811WI TRACO POWER DC/DC Converters

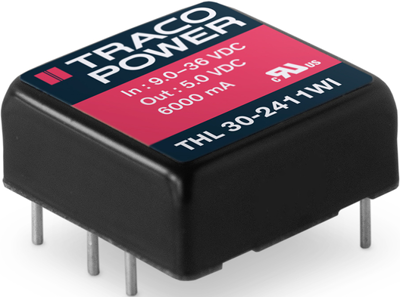

Image may differ
Unit Price (€ / pc.)
58.6194 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
58.62 € *
Price list
Quantity
Price per unit*
1 pcs.
58.6194 €
10 pcs.
52.7527 €
*incl. VAT plus shipping costs
Subject to prior sale

DC/DC Converter, THL 30-4811WI, TRACO POWER

The THL 30WI extends Traco Power’s existing 30 Watt DC/DC converter portfolio with a new generation of 1” x 1” package converter. With the focus on combining cost efficiency and quality this isolated high performance 30 Watt DC/DC converter is suitable for many different applications. The comes in an encapsulated, shielded 1” x 1” x 0.4” metal package and offers integrated remote on/off and trim functions. High efficiency up to 88% enables This converter to operate from -40°C to +60°C without derating. All models have a wide 4:1 input voltage range and precisely regulated, isolated outputs. The meets the latest IT safety certifications (UL 62368-1) and is suitable for uses in mobile equipment, instrumentation, distributed power architectures in communication and industrial electronics and everywhere where cost efficiency and quality are critical factors.

Features

  • Cost efficient design
  • Protection against overload
  • Overvoltage and short circuit
  • Remote On/Off and trim function
  • Optional heatsink for increased temperature capabilities
Technical specifications
Output voltage DC 5 VDC
Output current 6000 mA
Width 25.4 mm
Height 10.2 mm
Power 30 W
Length 25.4 mm
Isolation voltage 1.5 kV
Number of outputs 1
efficiency 88 %
Input voltage AC 18-75 VDC
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
