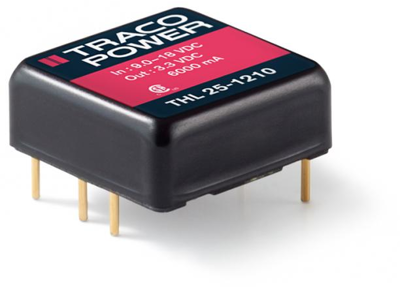

THL 25-1210 | TRACO POWER
DC converter, 9-18 VDC, 20 W, 1 output, 3.3 VDC, 87 % efficiency, THL 25-1210
Unit Price (€ / pc.)
62.0704 € *
Available in 7 Days: 20 pcs. - if ordered today
Total Price:
62.07 € *
Price list
Quantity
Price per unit*
1 pcs.
62.0704 €
10 pcs.
55.8705 €
*incl. VAT plus shipping costs
Subject to prior sale
DC/DC converters, Traco THL 25-1210
The THL 25 series is the latest generation of dc-dc converter modules with highest power density. The product achieves 25 Watt output power and comes in a metal case with small dimensions of only 1.0”x 1.0”x 0.4”. All models have a wide 2:1 input voltage range and precisely regulated output voltages. High efficiency of up to 90% makes this product very reliable and applicable in temperature ranges of up to +80°C or up to +85°C with optional mounted heat sink. Typical applications are in mobile equipments, instrumentation, distributed power architectures in communication and industrial electronics and everywhere where space on the PCB is critical
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 6 A | |
| Output voltage DC | 3.3 VDC | |
| Input voltage AC | 9-18 VDC | |
| Power | 20 W | |
| efficiency | 87 % | |
| Design | DIP6 | |
| Isolation voltage | 1.5 kV | |
| Length | 25.4 mm | |
| Width | 25.4 mm | |
| Height | 10.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
