THL 15-2422WI | TRACO POWER

DC converter, 9-36 VDC, 15 W, 2 outputs, ±12 VDC, 89 % efficiency, THL 15-2422WI

Order No.: 32C4767
EAN: 4099891334338
MPN:
THL 15-2422WI
Series: THL 15WI
THL 15-2422WI TRACO POWER DC/DC Converters

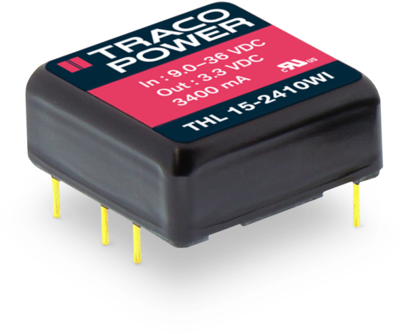

Image may differ
Unit Price (€ / pc.)
32.4989 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
32.50 € *
Price list
Quantity
Price per unit*
1 pcs.
32.4989 €
10 pcs.
29.2383 €
*incl. VAT plus shipping costs
Subject to prior sale

DC/DC converters, Traco THL 15-2422WI

The THL 15WI series is Traco Power’s latest addition to the existing 15 Watt DC/DC converter range. With the focus on combining cost efficiency and quality this isolated high performance 15 Watt DC/DC converter is suitable for many different applications. The series comes in an encapsulated, shielded 1” x 1” x 0.4” metal package and has a fully integrated EN 55032 class A filter. High efficiency up to 91% enables the converter to operate from –40°C to +70°C without derating. All models have an ultra wide 4:1 input voltage range and precisely regulated, isolated outputs. The series meets the latest IT safety certifications (UL 62368-1) and is thus eligible for uses in mobile equipment, instrumentation, distributed power architectures in communication and industrial electronics and everywhere where cost efficiency and quality are critical factors.

Technical specifications
Number of outputs 2
Output current 625 mA
Output voltage DC ±12 VDC
Input voltage AC 9-36 VDC
Power 15 W
efficiency 89 %
Design DIP6
Isolation voltage 1.8 kV
Length 25.4 mm
Width 25.4 mm
Height 10.2 mm
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
