THI 1221 | TRACO POWER
DC converter, 11-13 VDC, 1.9 W, 2 outputs, ±12 VDC, 59 % efficiency, THI 1221
Unit Price (€ / pc.)
37.3303 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
37.33 € *
Price list
Quantity
Price per unit*
1 pcs.
37.3303 €
10 pcs.
33.5937 €
*incl. VAT plus shipping costs
Subject to prior sale

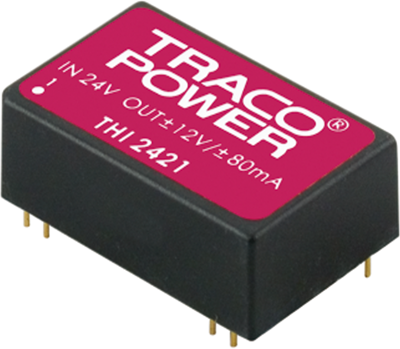

DC/DC converters, Traco THI 1221
The THI 2 series is a family of dc/dc converter with very high I/O isolation specification.They offer a cost effective solution for all industrial, telecom and medical applications where a supplementary insulation is required. SMD technology and a100 % production test of the safety barrier ensure a very high reliability of this product.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 2 | |
| Output current | 80 mA | |
| Output voltage DC | ±12 VDC | |
| Input voltage AC | 11-13 VDC | |
| Power | 1.9 W | |
| efficiency | 59 % | |
| Design | DIP24 | |
| Isolation voltage | 2.5 kV | |
| Length | 32 mm | |
| Width | 20 mm | |
| Height | 10 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
