THI 0513 | TRACO POWER
DC converter, 4.5-5.5 VDC, 2 W, 1 output, 15 VDC, 64 % efficiency, THI 0513
Unit Price (€ / pc.)
36.1403 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
36.14 € *
Price list
Quantity
Price per unit*
1 pcs.
36.1403 €
10 pcs.
32.5346 €
*incl. VAT plus shipping costs
Subject to prior sale

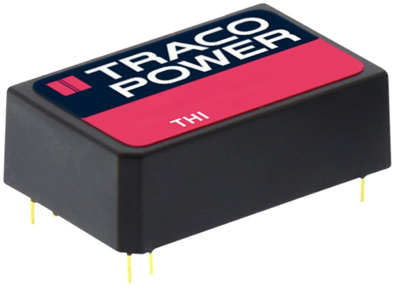

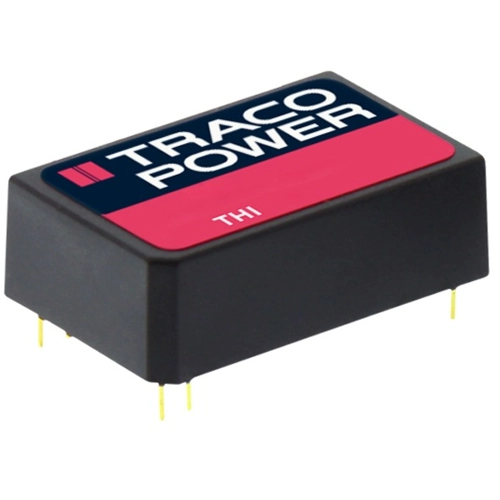

DC/DC converters, Traco THI 0513
The THI 2 series is a family of dc/dc converter with very high I/O isolation specification.They offer a cost effective solution for all industrial, telecom and medical applications where a supplementary insulation is required. SMD technology and a100 % production test of the safety barrier ensure a very high reliability of this product.
Technical specifications
| Number of outputs | 1 | |
| Output current | 133 mA | |
| Output voltage DC | 15 VDC | |
| Input voltage AC | 4.5-5.5 VDC | |
| Power | 2 W | |
| efficiency | 64 % | |
| Design | DIP24 | |
| Isolation voltage | 2.5 kV | |
| Length | 31.8 mm | |
| Width | 20.3 mm | |
| Height | 10.2 mm |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
