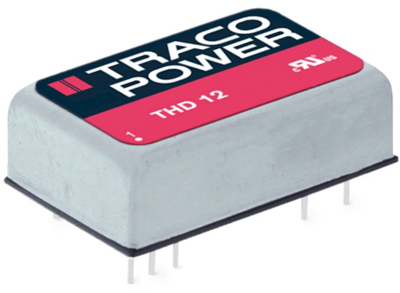

THD 12-4822 | TRACO POWER
DC converter, 36-75 VDC, 12 W, 2 outputs, ±12 VDC, 88 % efficiency, THD 12-4822
Unit Price (€ / pc.)
41.8880 € *
Available in 7 Days: 40 pcs. - if ordered today
Total Price:
41.89 € *
Price list
Quantity
Price per unit*
1 pcs.
41.8880 €
10 pcs.
37.6873 €
*incl. VAT plus shipping costs
Subject to prior sale
DC/DC converters, Traco THD 12-4822
The THD-12 series is a range of high performance, isolated 12W dc/dc converters. They come in a low profile, DIP-24 package with standard industry pin-out. Overload and overvoltage protection as well as remote On/Off are included as standard. Built-in filters for both input and output minimizes the need of external filtering. Full SMD-design with exclusive use of ceramic capacitors guarantees a high reliability and long product lifetime. Typical applications for these converters are industrial electronics, instrumentation, data communication systems and battery operated equipment with limited space available on the PCB
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 2 | |
| Output current | 500 mA | |
| Output voltage DC | ±12 VDC | |
| Input voltage AC | 36-75 VDC | |
| Power | 12 W | |
| efficiency | 88 % | |
| Design | DIP24 | |
| Isolation voltage | 1.5 kV | |
| Length | 31.8 mm | |
| Width | 20.32 mm | |
| Height | 10.22 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
