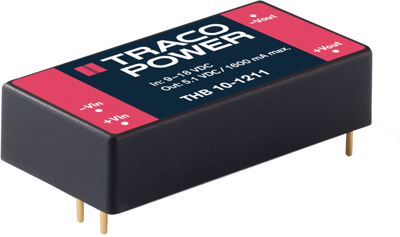

THB 10-1211 | TRACO POWER
DC converter, 9-18 VDC, 8.2 W, 1 output, 5.1 VDC, 75 % efficiency, THB 10-1211
Order No.: 32C1832
EAN: 7613441018645
MPN:
THB 10-1211
Unit Price (€ / pc.)
69.9244 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
69.92 € *
Price list
Quantity
Price per unit*
1 pcs.
69.9244 €
10 pcs.
62.9391 €
*incl. VAT plus shipping costs
Subject to prior sale
DC/DC converters, Traco THB 10-1211
The THB 10 series is a range of high performance DC/DC converter modules with double reinforced insulation system. It complies to latest medical safety standard IEC 60950-1 3rd edition for MOOP (Means of Operator Protection). The product comes in a 2”x1” industry standard package. All 12 models features wide 2:1 input voltage range and fully regulated output voltage. The converters offer an economical solution for demanding applications in industrial and medical instrumentation.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 1.6 A | |
| Output voltage DC | 5.1 VDC | |
| Input voltage AC | 9-18 VDC | |
| Power | 8.2 W | |
| efficiency | 75 % | |
| Design | DIP5 | |
| Isolation voltage | 4 kV | |
| Length | 50.8 mm | |
| Width | 25.4 mm | |
| Height | 12 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
