TES 3-4810 | TRACO POWER
DC converter, 36-75 VDC, 2.3 W, 1 output, 3.3 VDC, 76 % efficiency, TES 3-4810
Unit Price (€ / pc.)
33.5580 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
33.56 € *
Price list
Quantity
Price per unit*
1 pcs.
33.5580 €
10 pcs.
30.2022 €
*incl. VAT plus shipping costs
Subject to prior sale

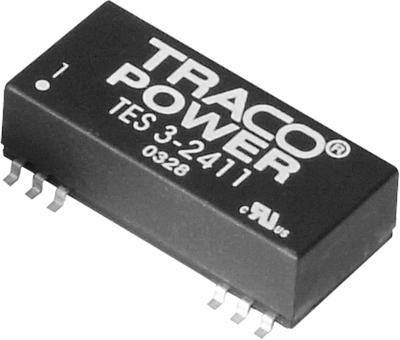

DC/DC converters, Traco TES 3-4810
The TES-3 series is a family of high performance 3W dc-dc converter modules featuring wide 2:1 input voltage ranges. The 15 models come in a low profile SMD package with dimensions of 32.3 x 14.8 x 10.2 mm. A high efficiency allows an operating temperature range of –40°C to +85°C at full load. This product is qualified for soldering in a high temperature lead-free reflow solder process. Typical applications for the converters are battery operated equipment, instrumentation, communication and industrial electronics, everywhere where an isolated, tightly regulated voltage is required.
Technical specifications
| Number of outputs | 1 | |
| Output current | 700 mA | |
| Output voltage DC | 3.3 VDC | |
| Input voltage AC | 36-75 VDC | |
| Power | 2.3 W | |
| efficiency | 76 % | |
| Design | SMD | |
| Isolation voltage | 1.5 kV | |
| Length | 32.2 mm | |
| Width | 14.8 mm | |
| Height | 10.2 mm |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
