TES 2-2422M | TRACO POWER
DC converter, 21.6-26.4 VDC, 2 W, 2 outputs, ±12 VDC, 74 % efficiency, TES 2-2422M
Unit Price (€ / pc.)
31.6064 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
31.61 € *
Price list
Quantity
Price per unit*
1 pcs.
31.6064 €
10 pcs.
28.4291 €
*incl. VAT plus shipping costs
Subject to prior sale

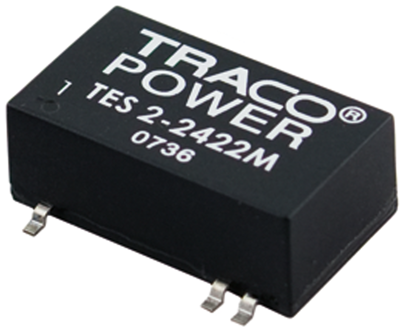

DC/DC converters, Traco TES 2-2422M
The TES 2M series is range of compact 2W DC/DC-converters providing a high I/O-isolation voltage of 4000 VAC. With a reinforced I/O-isolation system this product is an economical solution for many applications in instrumentation, industrial controls, medical equipment and everywhere where supplementary- or reinforced insulation is required. These converters are qualified for high solder temperature profiles in leadfree solder processes. For automated SMD production lines the devices can be supplied in tape & reel package. Full SMD-design with exclusive use of ceramic capacitors ensure a very high reliability and a long product lifetime.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 2 | |
| Output current | 83 mA | |
| Output voltage DC | ±12 VDC | |
| Input voltage AC | 21.6-26.4 VDC | |
| Power | 2 W | |
| efficiency | 74 % | |
| Design | SMD | |
| Isolation voltage | 4 kV | |
| Length | 23.8 mm | |
| Width | 13.7 mm | |
| Height | 8.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
