TES 2-1211H | TRACO POWER
DC converter, 10.8-13.2 VDC, 2 W, 1 output, 5 VDC, 75 % efficiency, TES 2-1211H
Unit Price (€ / pc.)
12.8044 € *
Available in 7 Days: 670 pcs. - if ordered today
Total Price:
12.80 € *
Price list
Quantity
Price per unit*
1 pcs.
12.8044 €
10 pcs.
11.5311 €
*incl. VAT plus shipping costs
Subject to prior sale

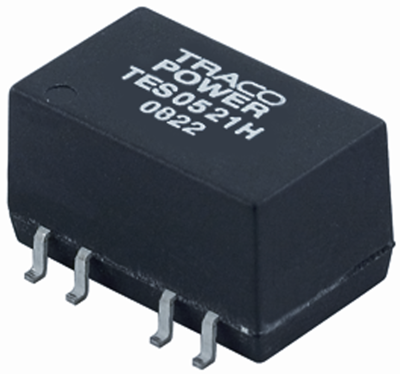

DC/DC converters, Traco TES 2-1211H
With their small footprint these 2 Watt DC/DC converters are an ideal and economical solution for many applications where an isolated voltage is required. Typical applications are ground loop elimination, noise reduction, voltage isolation in digital interfaces and voltage conversion in distributed power systems. With a new package design these converters are qualified for the higher temperatures requested by lead-free reflow solder processes. For automated SMD production lines the devices can be supplied in standard tape and reel package.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 400 mA | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 10.8-13.2 VDC | |
| Power | 2 W | |
| efficiency | 75 % | |
| Design | SMD | |
| Isolation voltage | 1.5 kV | |
| Length | 13.7 mm | |
| Width | 9.3 mm | |
| Height | 8.9 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
