TES 2-0521H | TRACO POWER

DC converter, 4.5-5.5 VDC, 2 W, 2 outputs, ±5 VDC, 74 % efficiency, TES 2-0521H

Order No.: 32C1769
EAN: 4099891309893
MPN:
TES 2-0521H
Series: TES 2H
TES 2-0521H TRACO POWER DC/DC Converters

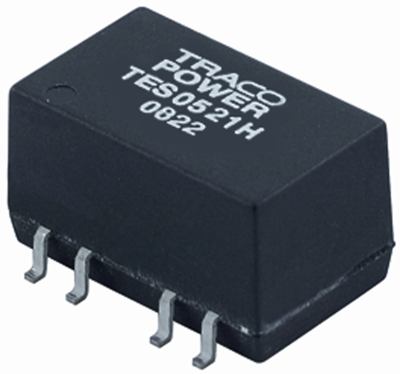

Image may differ
Unit Price (€ / pc.)
13.8516 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
13.85 € *
Price list
Quantity
Price per unit*
1 pcs.
13.8516 €
10 pcs.
12.4712 €
*incl. VAT plus shipping costs
Subject to prior sale

DC/DC converters, Traco TES 2-0521H

With their small footprint these 2 Watt DC/DC converters are an ideal and economical solution for many applications where an isolated voltage is required. Typical applications are ground loop elimination, noise reduction, voltage isolation in digital interfaces and voltage conversion in distributed power systems. With a new package design these converters are qualified for the higher temperatures requested by lead-free reflow solder processes. For automated SMD production lines the devices can be supplied in standard tape and reel package.

Technical specifications
Number of outputs 2
Output current 200 mA
Output voltage DC ±5 VDC
Input voltage AC 4.5-5.5 VDC
Power 2 W
efficiency 74 %
Design SMD
Isolation voltage 1.5 kV
Length 16.3 mm
Width 9.3 mm
Height 8.9 mm
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
