TES 1-2421V | TRACO POWER

DC converter, 21.6-26.4 VDC, 1 W, 2 outputs, ±5 VDC, 73 % efficiency, TES 1-2421V

Order No.: 32C1763
EAN: 4099891309831
MPN:
TES 1-2421V
Series: TES 1V
TES 1-2421V TRACO POWER DC/DC Converters

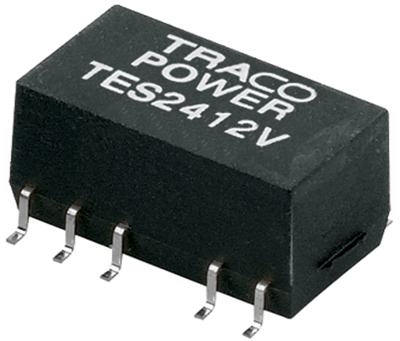

Image may differ
Unit Price (€ / pc.)
11.4359 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
11.44 € *
Price list
Quantity
Price per unit*
1 pcs.
11.4359 €
10 pcs.
10.2935 €
*incl. VAT plus shipping costs
Subject to prior sale

DC/DC converters, Traco TES 1-2421V

The TES-1V series are miniature, 1W DC/DC-converters with high isolation in a SMD package. With a new package design these converters are qualified for the higher temperatures requested by lead-free reflow solder processes. With the small footprint, these converters are the ideal solution for board level power distribution, mainly for applications in the industrial- and telecom field. For automated SMD production lines the devices can be supplied in standard tape and reel package.

Technical specifications
Number of outputs 2
Output current 100 mA
Output voltage DC ±5 VDC
Input voltage AC 21.6-26.4 VDC
Power 1 W
efficiency 73 %
Design SMD
Isolation voltage 3 kV
Length 16.3 mm
Width 8 mm
Height 8 mm
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
