TEQ 40-4815WIR | TRACO POWER
DC converter, 18-75 VDC, 40 W, 1 output, 24 VDC, 90 % efficiency, TEQ 40-4815WIR
Unit Price (€ / pc.)
187.2108 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
187.21 € *
Price list
Quantity
Price per unit*
1 pcs.
187.2108 €
10 pcs.
168.4921 €
*incl. VAT plus shipping costs
Subject to prior sale

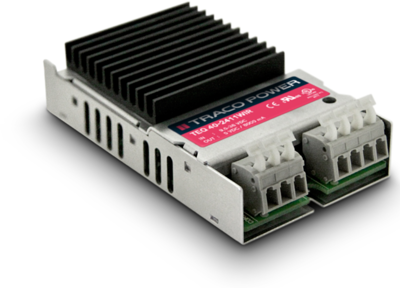

DC/DC converters, Traco TEQ 40-4815WIR
The TEQ-40WIR Series is a family of isolated high performance railway dc-dc converter modules with ultra-wide 4:1 input voltage ranges which come in a rugged metal case. These converters are suitable for a wide range of applications,but the product is designed particularly also for industrial applications where often no PCB mounting is possible but the module has to be mounted on a chassis. A very high efficiency and the heatsink construction allows an operating temperature up to +83°C with natural convection cooling without power derating and up to +92ºC with power derating. Further features include under voltage lockout, over temperature protection and short circuit protection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 57 mm | |
| Power | 40 W | |
| Length | 103 mm | |
| Input voltage AC | 18-75 VDC | |
| Isolation voltage | 1.6 kV | |
| Output current | 1.67 A | |
| efficiency | 90 % | |
| Number of outputs | 1 | |
| Height | 26 mm | |
| Output voltage DC | 24 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
