TEP 150-7213WI | TRACO POWER

DC converter, 43-160 VDC, 150 W, 1 output, 15 VDC, 89 % efficiency, TEP 150-7213WI

Order No.: 32C1622
EAN: 7613441015514
MPN:
TEP 150-7213WI
Series: TEP 150WI
TEP 150-7213WI TRACO POWER DC/DC Converters

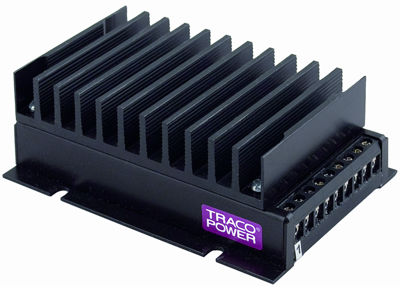

Image may differ
Unit Price (€ / pc.)
266.1554 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
266.16 € *
Price list
Quantity
Price per unit*
1 pcs.
266.1554 €
10 pcs.
239.5351 €
*incl. VAT plus shipping costs
Subject to prior sale

DC/DC converters, Traco TEP 150-7213WI

The modules have originally been designed for harsh industrial environment. High EMC immunity against surge, burst, radiated and conducted disturbances and the shock/ vibration and thermal shock resistance make them very popular for stringent requirements. With the extended input voltage ranges that cover the nominal 24, 36, 72 and 110 VDC with ±40 % tolerance and the approval in accordance to EN50155 standard they now also offer a reliable solution for mobile and stationary railway applications. At 100% load the current characteristics goes from constant voltage to constant current what makes the units also suitable for battery charger applications. With protection against over-temperature, overload, short-circuit, reverse input, overvoltage and input under-voltage lock-out they are hard to destroy.

Technical specifications
Filter Property Value
Height 35.7 mm
Power 150 W
Isolation voltage 2.25 kV
Output voltage DC 15 VDC
efficiency 89 %
Output current 10 A
Number of outputs 1
Length 98 mm
Width 59 mm
Input voltage AC 43-160 VDC
Logistics
Property Value
Customs tariff number 85044095
Country of origin TW
Compliance
Property Value
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
