TEP 150-2418WI | TRACO POWER
DC converter, 9-36 VDC, 150 W, 1 output, 48 VDC, 86 % efficiency, TEP 150-2418WI
Unit Price (€ / pc.)
238.8687 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
238.87 € *
Price list
Quantity
Price per unit*
1 pcs.
238.8687 €
10 pcs.
214.9616 €
*incl. VAT plus shipping costs
Subject to prior sale

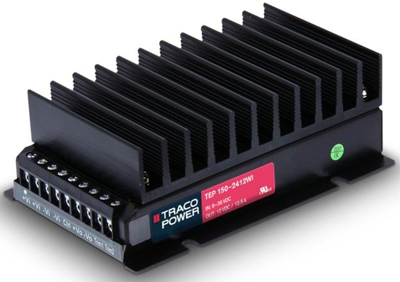

DC/DC Railway Converter , TEP 150-2418WI, TRACO POWER
The THN 15-2412 has originally been designed for harsh industrial environment. High EMC immunity against surge, burst, radiated and conducted disturbances and the shock/ vibration and thermal shock resistance makes it very popular for stringent requirements.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 3.2 A | |
| Output voltage DC | 48 VDC | |
| Input voltage AC | 9-36 VDC | |
| Power | 150 W | |
| efficiency | 86 % | |
| Isolation voltage | 2.25 kV | |

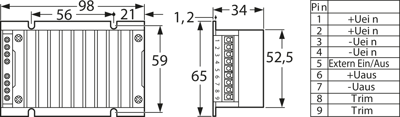

| Length | 98 mm | |
| Width | 65 mm | |
| Height | 35.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
