TEP 100-2410 | TRACO POWER

DC converter, 18-36 VDC, 83 W, 1 output, 3.3 VDC, 91 % efficiency, TEP 100-2410

Order No.: 32C1598
EAN: 4099891308193
MPN:
TEP 100-2410
Series: TEP 100
TEP 100-2410 TRACO POWER DC/DC Converters

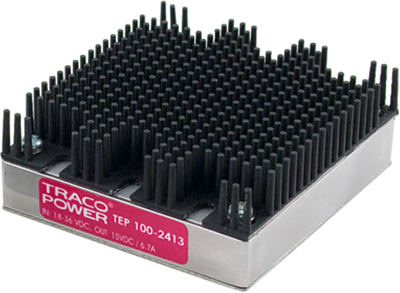

Image may differ
Unit Price (€ / pc.)
177.3338 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
177.33 € *
Price list
Quantity
Price per unit*
1 pcs.
177.3338 €
10 pcs.
159.6028 €
*incl. VAT plus shipping costs
Subject to prior sale

DC/DC converters, Traco TEP 100-2410

The TEP 100 Series is a family of isolated high performance dc-dc converter modules with wide 2:1 input voltage ranges which come in a rugged, sealed industry standard half brick package. A very high efficiency allows full power operation without forced air cooling at 25°C. This temperature can be increased to 40°C with optional mounted heat-sink or up to 60°C when mounted on an iron base plate. The very wide input voltage range and reverse input voltage protection make these converters interesting solution for battery operated systems. Typical applications are in telecom/datacom and industry control.

Technical specifications
Number of outputs 1
Output current 25 A
Output voltage DC 3.3 VDC
Input voltage AC 18-36 VDC
Power 83 W
efficiency 91 %
Design module
Isolation voltage 2.25 kV
Length 61 mm
Width 57.9 mm
Height 12.7 mm
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
