TEN 5-4812WI | TRACO POWER
DC converter, 18-75 VDC, 6 W, 1 output, 12 VDC, 83 % efficiency, TEN 5-4812WI
Unit Price (€ / pc.)
29.4049 € *
Available in 7 Days: 420 pcs. - if ordered today
Total Price:
29.40 € *
Price list
Quantity
Price per unit*
1 pcs.
29.4049 €
10 pcs.
26.4775 €
*incl. VAT plus shipping costs
Subject to prior sale

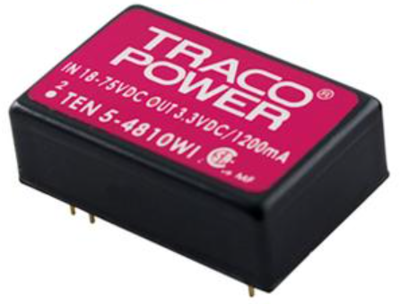

DC/DC Converter, TEN 5-4812WI, TRACO POWER
The TEN 5-4812WI is a high performance DC/DC converter module with 5 W output power. It comes in a shielded DIP-24 metal package with industry-standard footprint. A high efficiency allows -40°C to +70°C operation ambient temperatures at full load.
Features
- High efficiency
- Excellent load and line regulation
- Indefinite short circuit protection
- Lead-free design -RoHS compliant
Applications
- Battery operated equipment
- Instrumentation
- Distributed power architectures in communication and industrial electronics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 500 mA | |
| Output voltage DC | 12 VDC | |
| Input voltage AC | 18-75 VDC | |
| Power | 6 W | |
| efficiency | 83 % | |

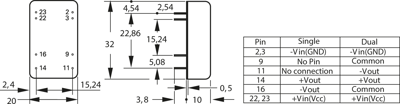

| Design | DIP24 | |
| Isolation voltage | 1.5 kV | |
| Length | 31.8 mm | |
| Width | 20.3 mm | |
| Height | 10.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Original Packaging | Bar with 10 pieces |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
