TEN 40-2410N | TRACO POWER
DC converter, 18-36 VDC, 26 W, 1 output, 3.3 VDC, 90 % efficiency, TEN 40-2410N
Unit Price (€ / pc.)
73.9823 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
73.98 € *
Price list
Quantity
Price per unit*
1 pcs.
73.9823 €
10 pcs.
66.5805 €
*incl. VAT plus shipping costs
Subject to prior sale

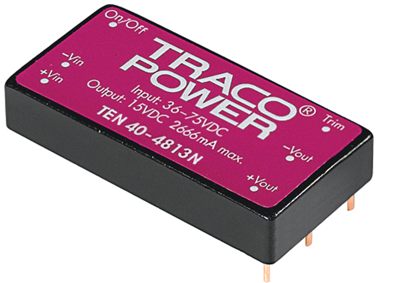

DC/DC converters, Traco TEN 40-2410N
The TEN 40N Series is a new range of isolated high performance dc-dc converter modules. Due to the very high efficiency of up to 92% these 40 W converters come with a footprint of only 1.0” x 2.0”. The 15 models have a wide 2:1 input voltage range and a tight output voltage regulation. The output voltage is adjustable by external resistor. Remote On/Off and protection against overpower and overvoltage are standard features of these converters. Typical applications are in mobile equipment, instrumentation, distributed power architectures in communication and industrial electronics and everywhere where space on the PCB is critical.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 8 A | |
| Output voltage DC | 3.3 VDC | |
| Input voltage AC | 18-36 VDC | |
| Power | 26 W | |
| efficiency | 90 % | |
| Design | DIP6 | |
| Isolation voltage | 1.5 kV | |
| Length | 50.8 mm | |
| Width | 25.4 mm | |
| Height | 10.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
