TEN 30-7212UIR | TRACO POWER
DC converter, 14-160 VDC, 30 W, 1 output, 12 VDC, 90 % efficiency, TEN 30-7212UIR
Unit Price (€ / pc.)
96.8898 € *
Available in 7 Days: 140 pcs. - if ordered today
Total Price:
96.89 € *
Price list
Quantity
Price per unit*
1 pcs.
96.8898 €
10 pcs.
87.2032 €
*incl. VAT plus shipping costs
Subject to prior sale

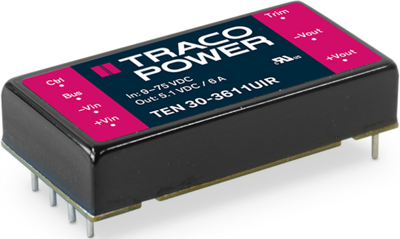

DC/DC Converter, TEN 30-7212UIR, TRACO POWER
The TEN 30UIR is a high-performance DC/DC converter with an ultra-wide 12:1 input voltage range and a power output of 30 watt. The TEN 30UIR comes in a compact, fully encapsulated 2”x1” housing for highest reliability and effective cooling. Thanks to its dedicated holdup capacitor connection, the TEN 30UIR meets extended holdup-time requirements without the need for bulky input capacitors. The TEN 30UIR is EN 50155 certified for rolling stock applications, EN 61373 certified for resistance against mechanical shock and vibration and EN 45545-2 certified for fire behavior. The TEN 30UIR also comes with IEC/EN/UL 62368-1 safety approvals for use in a wide range of demanding industrial applications.
Features
- Dedicated holdup capacitor connection
- Fully encapsulated
- Remote on/off and trim function
- Protection against short-circuit (SCP)
- Overvoltage (OVP)
- Overtemperature (OTP)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 25.4 mm | |
| Output current | 2500 mA | |
| Height | 10.2 mm | |
| Output voltage DC | 12 VDC | |
| Input voltage AC | 14-160 VDC | |
| Number of outputs | 1 | |
| Power | 30 W | |
| Isolation voltage | 3 kV | |
| Length | 50.8 mm | |
| efficiency | 90 % |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
