TEN 30-2422WIN | TRACO POWER
DC converter, 9-36 VDC, 15 W, 2 outputs, ±12 VDC, 87 % efficiency, TEN 30-2422WIN
Unit Price (€ / pc.)
87.7863 € *
Standard delivery time from the manufacturer is: 20 Weeks
DC/DC Converter, TEN 30-2422WIN, TRACO POWER
The TEN 30-2422WIN is a high performance 30W DC/DC converter module featuring ultra wide 4:1 input voltage ranges in a compact low profile case with industry-standard footprint.
Features
- Over-temperature protection
- Remote On/Off control
- Adjustable output voltage
Applications
- Battery operated equipment
- Distributed power architectures in communication
- Industrial electronics
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 2 | |
| Output current | 1.25 A | |
| Output voltage DC | ±12 VDC | |
| Input voltage AC | 9-36 VDC | |
| Power | 15 W | |
| efficiency | 87 % | |

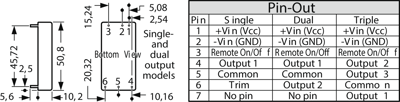

| Design | DIP7 | |
| Isolation voltage | 1.6 kV | |
| Length | 50.8 mm | |
| Width | 25.4 mm | |
| Height | 10.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
