TEN 3-4822WI | TRACO POWER

DC converter, 18-75 VDC, 2.9 W, 2 outputs, ±12 VDC, 82 % efficiency, TEN 3-4822WI

Order No.: 32C1374
EAN: 7613441011530
MPN:
TEN 3-4822WI
Series: TEN 3WI
TEN 3-4822WI TRACO POWER DC/DC Converters

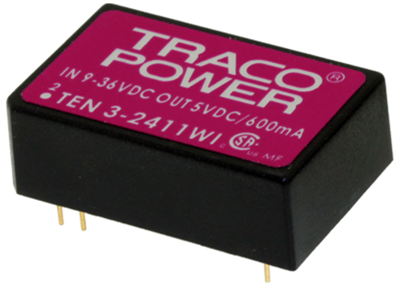

Image may differ
Unit Price (€ / pc.)
24.4783 € *
Available in 10 days: 60 pcs. - if ordered today
Total Price:
24.48 € *
Price list
Quantity
Price per unit*
1 pcs.
24.4783 €
10 pcs.
22.0269 €
*incl. VAT plus shipping costs
Subject to prior sale

DC/DC converters, Traco TEN 3-4822WI

The TEN 3WI series is a family of dc-dc converter modules with 3W output power, featuring ultra wide 4:1 input voltage ranges of 9-36VDC or 18-75VDC. They come in a DIP-24 plastic package with industry-standard footprint. A high efficiency up to 84% allows operation ambient temperatures of –40°C to +70°C at full load. A built-in EMI input filter complies with EN 55022,class A without need of external components. Further standard features include over voltage protection and continuous short circuit protection. Typical applications for these converters are battery operated equipment and distributed power architectures in communication, instrumentation and industrial electronics, everywhere where isolated, tightly regulated voltages are required

Technical specifications
Filter Property Value
Number of outputs 2
Output current 125 mA
Output voltage DC ±12 VDC
Input voltage AC 18-75 VDC
Power 2.9 W
efficiency 82 %
Design DIP24
Isolation voltage 1.5 kV
Length 31.8 mm
Width 20 mm
Height 10.2 mm
Logistics
Property Value
Customs tariff number 85044095
Country of origin TW
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
