TEN 3-4812 | TRACO POWER

DC converter, 36-75 VDC, 3 W, 1 output, 12 VDC, 84 % efficiency, TEN 3-4812

Order No.: 32C1309
EAN: 4099891305307
MPN:
TEN 3-4812
Series: TEN 3
TEN 3-4812 TRACO POWER DC/DC Converters

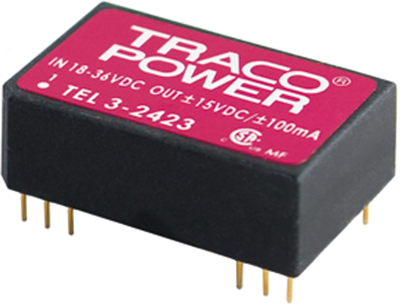

Image may differ
Unit Price (€ / pc.)
19.2185 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
19.22 € *
Price list
Quantity
Price per unit*
1 pcs.
19.2185 €
10 pcs.
17.2788 €
*incl. VAT plus shipping costs
Subject to prior sale

DC/DC converters, Traco TEN 3-4812

The TEN 3 series of DC/DC converters, comprising 28 models, has been designed for a wide range of applications in industrial and communication systems. High efficiency allows an operating temperature range of –40°C to +85°C. Other features of these converters are internal filtering according to EN 55022-A and FCC, level A. Full SMD-design guarantees a high reliability of this product.

Technical specifications
Filter Property Value
Number of outputs 1
Output current 250 mA
Output voltage DC 12 VDC
Input voltage AC 36-75 VDC
Power 3 W
efficiency 84 %
Design DIP24
Isolation voltage 1.5 kV
Length 31.8 mm
Width 20.3 mm
Height 10.2 mm
Logistics
Property Value
Country of origin TW
Customs tariff number 85044095
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
