TEN 25-4810WI | TRACO POWER
DC converter, 18-75 VDC, 18.2 W, 1 output, 3.3 VDC, 82 % efficiency, TEN 25-4810WI
Unit Price (€ / pc.)
60.9518 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
60.95 € *
Price list
Quantity
Price per unit*
1 pcs.
60.9518 €
10 pcs.
54.8590 €
*incl. VAT plus shipping costs
Subject to prior sale

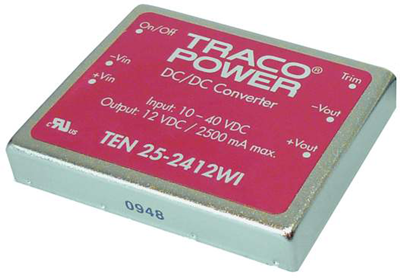

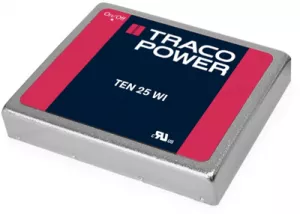

DC/DC converters, Traco TEN 25-4810WI
The TEN 25WI series is a family of high performance dc-dc converter modules up to 30 Watt featuring ultra wide 4:1 input voltage ranges in a compact low profile case with industry standard footprint. Standard features include remote On/Off, output voltage trimming, over voltage protection, under voltage lockout, over temperature and short circuit protection. Another features is the internal EMI-filter to meet EN 55022, class A. Typical applications for these converter modules are industrial electronics, communication systems, battery operated equipment and distributed power systems.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 5.5 A | |
| Output voltage DC | 3.3 VDC | |
| Input voltage AC | 18-75 VDC | |
| Power | 18.2 W | |
| efficiency | 82 % | |
| Design | DIP6 | |
| Isolation voltage | 1.5 kV | |
| Length | 50.8 mm | |
| Width | 40.6 mm | |
| Height | 9.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
