TEN 25-2423WI | TRACO POWER

DC converter, 10-40 VDC, 30 W, 2 outputs, ±15 VDC, 89 % efficiency, TEN 25-2423WI

Order No.: 32C1297
EAN: 4099891305185
MPN:
TEN 25-2423WI
Series: TEN 25WI
TEN 25-2423WI TRACO POWER DC/DC Converters

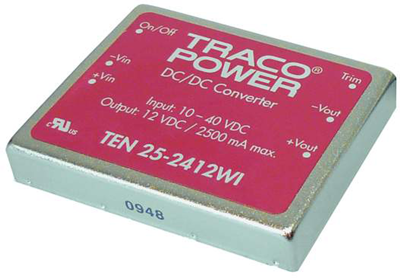

Image may differ
Unit Price (€ / pc.)
60.9518 € *
Available: 4 pcs.
Leadtime: 14 Weeks **
Total Price:
60.95 € *
Price list
Quantity
Price per unit*
1 pcs.
60.9518 €
10 pcs.
54.8590 €
*incl. VAT plus shipping costs
**Subject to prior sale

DC/DC converters, Traco TEN 25-2423WI

The TEN 25WI series is a family of high performance dc-dc converter modules up to 30 Watt featuring ultra wide 4:1 input voltage ranges in a compact low profile case with industry standard footprint. Standard features include remote On/Off, output voltage trimming, over voltage protection, under voltage lockout, over temperature and short circuit protection. Another features is the internal EMI-filter to meet EN 55022, class A. Typical applications for these converter modules are industrial electronics, communication systems, battery operated equipment and distributed power systems.

Technical specifications
Number of outputs 2
Output current 1 A
Output voltage DC ±15 VDC
Input voltage AC 10-40 VDC
Power 30 W
efficiency 89 %
Design DIP7
Isolation voltage 1.5 kV
Length 50.8 mm
Width 40.6 mm
Height 9.3 mm
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
