TEN 20-4810WIN | TRACO POWER
DC converter, 18-75 VDC, 20 W, 1 output, 3.3 VDC, 85 % efficiency, TEN 20-4810WIN
Unit Price (€ / pc.)
58.4290 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
58.43 € *
Price list
Quantity
Price per unit*
1 pcs.
58.4290 €
10 pcs.
52.5861 €
*incl. VAT plus shipping costs
**Subject to prior sale

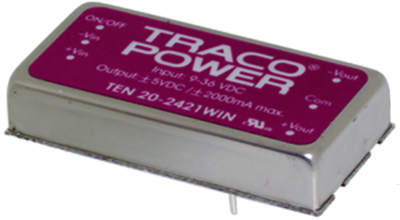

DC/DC converters, Traco TEN 20-4810WIN
The TEN 20WIN series is a family of high performance 20W DC/DC converter modules featuring ultra wide 4:1 input voltage ranges in a ultra compact 2“ x 1“ low profile package with industry-standard footprint. A very high efficiency allows an operating temperature range of –40°C to 85°C. Further standard features include remote On/Off, output voltage trimming, over voltage protection and short circuit protection. Typical applications for these converters are battery operated equipment and distributed power architectures in communication and industrial electronics, everywhere where isolated, tightly regulated voltages are required.
Technical specifications
| Number of outputs | 1 | |
| Output current | 5.5 A | |
| Output voltage DC | 3.3 VDC | |
| Input voltage AC | 18-75 VDC | |
| Power | 20 W | |
| efficiency | 85 % | |
| Design | DIP6 | |
| Isolation voltage | 1.5 kV | |
| Length | 50.8 mm | |
| Width | 25.4 mm | |
| Height | 10.2 mm |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
