TEN 20-2412WIN | TRACO POWER

DC converter, 9-36 VDC, 20 W, 1 output, 12 VDC, 86 % efficiency, TEN 20-2412WIN

Order No.: 26K2982
EAN: 4099891300265
MPN:
TEN 20-2412WIN
Series: TEN 20WIN

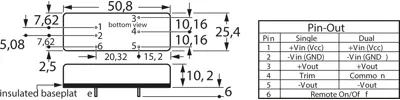

TEN 20-2412WIN TRACO POWER DC/DC Converters Image 1

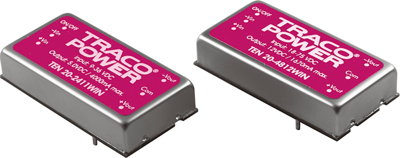

TEN 20-2412WIN TRACO POWER DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
56.7630 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
56.76 € *
Price list
Quantity
Price per unit*
1 pcs.
56.7630 €
10 pcs.
51.0867 €
*incl. VAT plus shipping costs
Subject to prior sale

DC converters, type Traco TEN 20WIN.

20 W version with ultimate performance density and 4 : 1 extended-range inputs, sustained short circuit-proof, shielded metal package with insulated base plate, industrial standard pinning. Input voltage fluctuation: ±0.2 %. Load fluctuation on single/dual output: ±0.5/±1.0 % Residual ripple on single/dual output: 75/100 mVpp. Operating temperatures: –40 to +85 °C. I/O insulation voltage: 1500 VDC. MTBF: 560000 h at +25 °C.

Technical attributes (type, input voltage range, output voltage/output current, efficiency): TEN 20-2412WIN, 9.0 - 36 VDC, 1 x OUT, 12 VDC/1.67 A, 86 %

Technical specifications
Filter Property Value
Number of outputs 1
Output current 1.67 A
Output voltage DC 12 VDC
Input voltage AC 9-36 VDC
Power 20 W
efficiency 86 %
Design DIP6
Isolation voltage 1.5 kV
Length 50.8 mm
Width 25.4 mm
Height 10.2 mm
Logistics
Property Value
Country of origin TW
Customs tariff number 85044095
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
