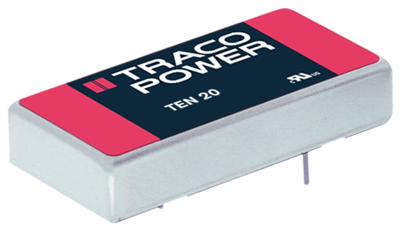

TEN 20-1212 | TRACO POWER
DC converter, 9-18 VDC, 20 W, 1 output, 12 VDC, 88 % efficiency, TEN 20-1212
Unit Price (€ / pc.)
65.1049 € *
Available in 10 days: 180 pcs. - if ordered today
Total Price:
65.10 € *
Price list
Quantity
Price per unit*
1 pcs.
65.1049 €
10 pcs.
58.5956 €
*incl. VAT plus shipping costs
Subject to prior sale
DC/DC converters, Traco TEN 20-1212
The TEN 20 series of DC/DC converters, comprising 18 different models, has been designed for a wide range of applications including communications, industrial systems and battery powered equipment. Full SMD-design with use of ceramic chip capacitors guarantees a high reliability and a long lifetime. Other features of this converters are internal filter to meet EN 55022, class A and FCC, level A and an extended temperature range of –40°C to +85°C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 1.67 A | |
| Output voltage DC | 12 VDC | |
| Input voltage AC | 9-18 VDC | |
| Power | 20 W | |
| efficiency | 88 % | |
| Design | DIP6 | |
| Isolation voltage | 1.5 kV | |
| Length | 50.8 mm | |
| Width | 25.4 mm | |
| Height | 10.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
