TEN 10-2411 | TRACO POWER

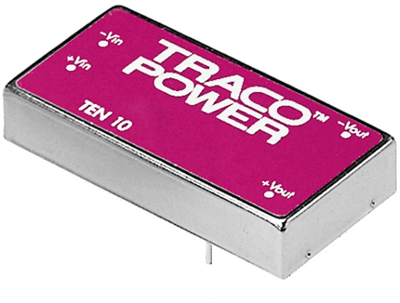

DC converter, 18-36 VDC, 10 W, 1 output, 5 VDC, 78 % efficiency, TEN 10-2411
DC converters, type Traco TEN 10-.
10 W converter with extended 2 : 1 input range. Features: shielded metal package with insulated base plate, standard pinning, high efficiency, and short circuit-proof. RF interference suppression to EN 55022 class A and FCC level A. Open-circuit input current: 30 mA at 12 VDC, 20 mA at 24 VDC. Adjustment tolerance: ±1.0 %. Input voltage fluctuation: ±0.3 %. Load fluctuation single/dual output: ±0.5 %/±1.0 %. Residual ripple on single/dual output: 50 mVpp/75 mVpp. Temperature coefficient: ±0.02 %/K. Operating temperatures: –40 to +85 °C. MTBF: 1.0 million h at +25 °C. I/O test voltage: 1500 VDC. Insulation resistance: 1000 Mohm.
Technical attributes (type, input voltage range, output voltage/ output current, typical efficiency): TEN 10-2411, 18 - 36 VDC, 1 x OUT, 5.0 VDC/2.0 A, 78 %
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 2 A | |
| Output voltage DC | 5 VDC | |
| Input voltage AC | 18-36 VDC | |
| Power | 10 W | |
| efficiency | 78 % | |
| Design | DIP5 | |
| Isolation voltage | 1.5 kV | |
| Length | 50.8 mm | |
| Width | 25.4 mm | |
| Height | 10.2 mm |
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
| Original Packaging | Bar with 10 pieces |
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
