TEL 8-2410 | TRACO POWER
DC converter, 18-36 VDC, 8 W, 1 output, 3.3 VDC, 78 % efficiency, TEL 8-2410
Unit Price (€ / pc.)
23.1455 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
23.15 € *
Price list
Quantity
Price per unit*
1 pcs.
23.1455 €
10 pcs.
20.8250 €
*incl. VAT plus shipping costs
**Subject to prior sale

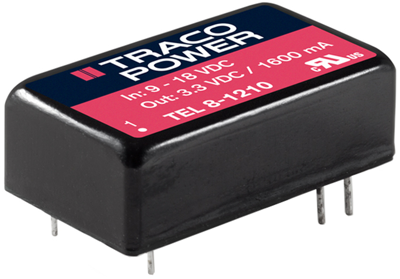

DC/DC converters, Traco TEL 8-2410
The TEL 8 series is a range of isolated 8 Watt converters which come in a very compact DIP-16 metal package. They offer a 2:1 input voltage range and feature a high efficiency of up to 86% which allows an operation temperature of up to +70°C at full load. An input filter makes the converters comply with conducted emission EN55022 class A. The TEL 8 Series models are an economical solution for space critical and cost sensitive applications in instrumentation, IT and industrial electronics.
Technical specifications
| Number of outputs | 1 | |
| Output current | 1.6 A | |
| Output voltage DC | 3.3 VDC | |
| Input voltage AC | 18-36 VDC | |
| Power | 8 W | |
| efficiency | 78 % | |
| Design | DIP16 | |
| Isolation voltage | 1.5 kV | |
| Length | 24.1 mm | |
| Width | 14 mm | |
| Height | 8.5 mm |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
