TEL 3-1223 | TRACO POWER
DC converter, 9-18 VDC, 3 W, 2 outputs, ±15 VDC, 80 % efficiency, TEL 3-1223
Unit Price (€ / pc.)
17.5763 € *
Available in 7 Days: 20 pcs. - if ordered today
DC/DC Converter, TEL 3-1223, TRACO POWER
The TEL 3-1223 is an isolated 3 W DC/DC converter in DIL-24 package. This product provides an economical solution for many cost critical applications in industrial and consumer electronics.
Features
- High efficiency
- Indefinite short circuit protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 2 | |
| Output current | 100 mA | |
| Output voltage DC | ±15 VDC | |
| Input voltage AC | 9-18 VDC | |
| Power | 3 W | |
| efficiency | 80 % | |

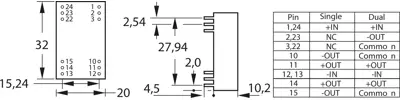

| Design | DIP24 | |
| Isolation voltage | 1.5 kV | |
| Length | 31.8 mm | |
| Width | 20.3 mm | |
| Height | 10.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Original Packaging | Bar with 10 pieces |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
