TEL 3-0513 | TRACO POWER

DC converter, 4.5-9 VDC, 3 W, 1 output, 15 VDC, 74 % efficiency, TEL 3-0513

Order No.: 26K2532
EAN: 4099891299378
MPN:
TEL 3-0513
Series: TEL 3

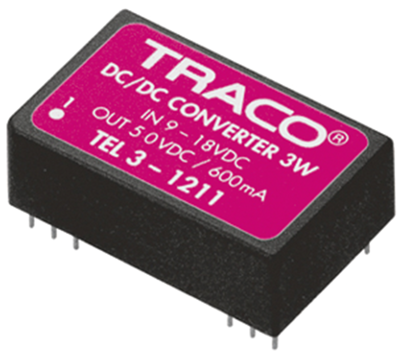

TEL 3-0513 TRACO POWER DC/DC Converters Image 1

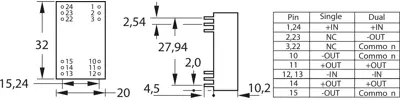

TEL 3-0513 TRACO POWER DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
15.5414 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
15.54 € *
Price list
Quantity
Price per unit*
1 pcs.
15.5414 €
10 pcs.
13.9706 €
*incl. VAT plus shipping costs
Subject to prior sale

DC converters, type Traco TEL 3-.

3.0 W converter in DiL 24 package, SMD technology, sustained circuit-proof, high efficiency; Input voltage range 2 : 1. Regulated outputs and I/O insulation voltage 1500 VDC. Output voltage adjustment tolerance: ±1.0 %. Control error: on input voltage fluctuation ±0.5 %, on load fluctuation ±0.5 %, ±1.0 % at dual output. Residual ripple: 60 mVpp. Operating temperatures: –40 to +85 °C. Package: plastic, non-conductive, black.

Technical attributes (type, input voltage range, output voltage/output current (± double)): TEL 3-0513, 4.5 - 9.0 VDC, 1 x OUT, 15 VDC/200 mA

Technical specifications
Number of outputs 1
Output current 200 mA
Output voltage DC 15 VDC
Input voltage AC 4.5-9 VDC
Power 3 W
efficiency 74 %
Design DIP24
Isolation voltage 1.5 kV
Length 32 mm
Width 20 mm
Height 10.2 mm
Logistics
Country of origin TW
Customs tariff number 85044095
Original Packaging Bar with 10 pieces
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
