TEL 2-1212 | TRACO POWER
DC converter, 9-18 VDC, 2 W, 1 output, 12 VDC, 80 % efficiency, TEL 2-1212
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
14.3633 € *
Available in 7 Days: 110 pcs. - if ordered today
DC/DC Converter, TEL 2-1212, TRACO POWER

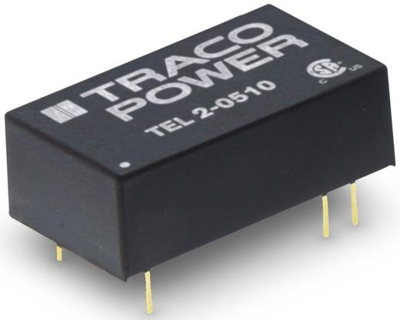

The TEL 2-1212 is an isolated 2 W converter in a low profile DIP-16 package. Requiring only 3.25 cm² of space on the PCB it provides a complete DC/DC converter without the need of any external components. The wide input range and tightly regulated output voltage qualify this converter for many cost critical applications in industrial and consumer electronics.
Features
- Low ripple and noise
- Lead-free design -RoHS compliant
- Indefinite short circuit protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 165 mA | |
| Output voltage DC | 12 VDC | |
| Input voltage AC | 9-18 VDC | |
| Power | 2 W | |
| efficiency | 80 % | |

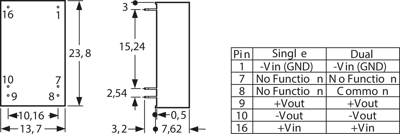

| Design | DIP16 | |
| Isolation voltage | 1.5 kV | |
| Length | 23.8 mm | |
| Width | 13.7 mm | |
| Height | 8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
