TEL 10-4813WI | TRACO POWER

DC converter, 18-75 VDC, 10 W, 1 output, 15 VDC, 88 % efficiency, TEL 10-4813WI

Order No.: 32C3686
EAN: 4099891325213
MPN:
TEL 10-4813WI
Series: TEL 10WI
TEL 10-4813WI TRACO POWER DC/DC Converters

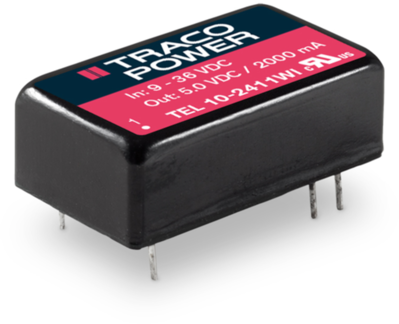

Image may differ
Unit Price (€ / pc.)
29.5596 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
29.56 € *
Price list
Quantity
Price per unit*
1 pcs.
29.5596 €
10 pcs.
26.5965 €
*incl. VAT plus shipping costs
Subject to prior sale

DC/DC converters, Traco TEL 10-4813WI

The TEL 10WI series is a range of isolated 10 Watt converters which come in an ultra compact DIP-16 metal package. The design purpose of these series was to miniaturize low power DC/DC converters to the maximum without sacrificing high efficiency. The TEL 10WI series sets the new standard for power density with 3.83 W/cm³. The TEL 10WI series offer an ultra wide 4:1 input voltage range and feature a high efficiency of up to 86% which enables an operation temperature of up to +70°C at full load and up to 88°C with 50% load. The converters have an internal input filter to comply with conducted emission EN 55032 / EN 55022 class A. The TEL 10WI Series models are an economical solution for space critical and cost sensitive applications in instrumentation, IT and industrial electronics.

Technical specifications
Number of outputs 1
Output current 666 mA
Output voltage DC 15 VDC
Input voltage AC 18-75 VDC
Power 10 W
efficiency 88 %
Design DIP16
Isolation voltage 1.5 kV
Length 23.8 mm
Width 13.7 mm
Height 8 mm
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
