TEL 10-2422 | TRACO POWER

DC converter, 18-36 VDC, 10 W, 2 outputs, ±12 VDC, 87 % efficiency, TEL 10-2422

Order No.: 32C4794
EAN: 7613441050485
MPN:
TEL 10-2422
Series: TEL 10
TEL 10-2422 TRACO POWER DC/DC Converters

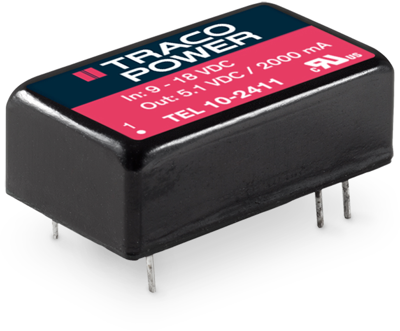

Image may differ
Unit Price (€ / pc.)
29.8452 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
29.85 € *
Price list
Quantity
Price per unit*
1 pcs.
29.8452 €
10 pcs.
26.8583 €
*incl. VAT plus shipping costs
Subject to prior sale

DC/DC converters, Traco TEL 10-2422

The TEL 10 series is a range of isolated 10 Watt DC/DC converters which come in a ultra compact DIP-16 metal package. The design purpose of these series was to miniaturized low power DC/DC converters to the maximum without sacrificing high efficiency. The TEL 10 series sets the new standart for power density with 3.83 W/cm³. The TEL 10 series offers a wide 2:1 input voltage range and features a high efficiency of up to 88% which enables an operation temperature of up to +70°C at full load and up to 85°C with 50% load. The converters have an internal input filter to comply with conducted emission EN 55032 class A. The TEL 10 Series models feature an overall economical solution for space critical and cost sensitive applications in instrumentation, IT and industrial electronics.

Technical specifications
Filter Property Value
Number of outputs 2
Output current 416 mA
Output voltage DC ±12 VDC
Input voltage AC 18-36 VDC
Power 10 W
efficiency 87 %
Design DIP16
Isolation voltage 1.8 kV
Length 23.8 mm
Width 13.7 mm
Height 8 mm
Logistics
Property Value
Customs tariff number 85044095
Country of origin TW
Compliance
Property Value
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
