TDR 2-0512SM | TRACO POWER

DC converter, 4.5-9 VDC, 2 W, 1 output, 12 VDC, 81 % efficiency, TDR 2-0512SM

Order No.: 32C1085
EAN: 7613441003511
MPN:
TDR 2-0512SM
Series: TDR 2SM

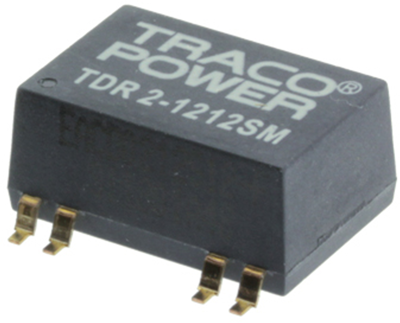

TDR 2-0512SM TRACO POWER DC/DC Converters
Image may differ
Unit Price (€ / pc.)
27.0368 € *
Available in 7 Days: 50 pcs. - if ordered today
Total Price:
27.04 € *
Price list
Quantity
Price per unit*
1 pcs.
27.0368 €
10 pcs.
24.3236 €
*incl. VAT plus shipping costs
Subject to prior sale

DC/DC converters, Traco TDR 2-0512SM

The TDR-2 series is a family of compact 2 W dc/dc-converters with 2:1 input voltage ranges and tightly regulated output voltages even under no load conditions. The product is available in SMD-package or in DIP-package. They work with high efficiency over the full load range and come with a remote On/Off input. The usability in temperature ranges of up to 85°C without power derating, continuous short circuit protection and excellent immunity against environmental influences make these converters very reliable. A TDR-2 converter is the ideal solution for space critical high end applications in communication equipment, instrumentation and industrial electronics.

Technical specifications
Filter Property Value
Number of outputs 1
Output current 167 mA
Output voltage DC 12 VDC
Input voltage AC 4.5-9 VDC
Power 2 W
efficiency 81 %
Design SMD
Isolation voltage 1.6 kV
Length 18.9 mm
Width 8.7 mm
Height 18.9 mm
Logistics
Property Value
Country of origin TW
Customs tariff number 85044095
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
