TDN 3-2419WI | TRACO POWER

DC converter, 9-36 VDC, 3 W, 1 output, 9 VDC, 81 % efficiency, TDN 3-2419WI

Order No.: 32C3362
EAN: 4099891322137
MPN:
TDN 3-2419WI
Series: TDN 3WI
TDN 3-2419WI TRACO POWER DC/DC Converters

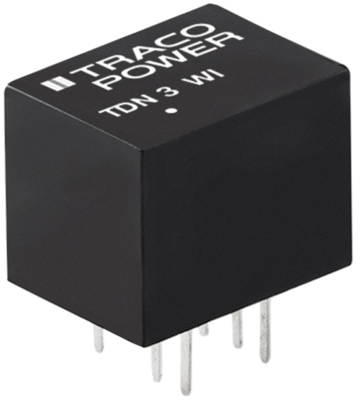

Image may differ
Unit Price (€ / pc.)
23.7167 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
23.72 € *
Price list
Quantity
Price per unit*
1 pcs.
23.7167 €
10 pcs.
21.3367 €
*incl. VAT plus shipping costs
Subject to prior sale

DC/DC converters, Traco TDN 3-2419WI

The TDN 3WI series is a range of 3 Watt regulated dc/dc-converters. They come in a very compact DIP package (0.52 x 0.36 x 040 inch). The functional I/O-isolation system is designed to meet IEC/EN 62368-1 with a test voltage (60 s) of 1600 VDC.

Technical specifications
Number of outputs 1
Output current 333 mA
Output voltage DC 9 VDC
Input voltage AC 9-36 VDC
Power 3 W
efficiency 81 %
Design DIP8
Isolation voltage 1.6 kV
Length 13.2 mm
Width 9.1 mm
Height 10.2 mm
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
