TDN 3-1211WI | TRACO POWER

DC converter, 4.5-18 VDC, 3 W, 1 output, 5 VDC, 80 % efficiency, TDN 3-1211WI

Order No.: 34C1038
EAN: 4099891336400
MPN:
TDN 3-1211WI
Series: TDN 3WI

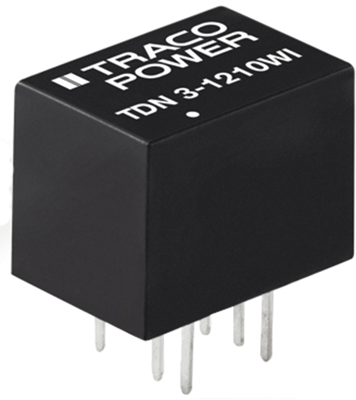

TDN 3-1211WI TRACO POWER DC/DC Converters Image 1

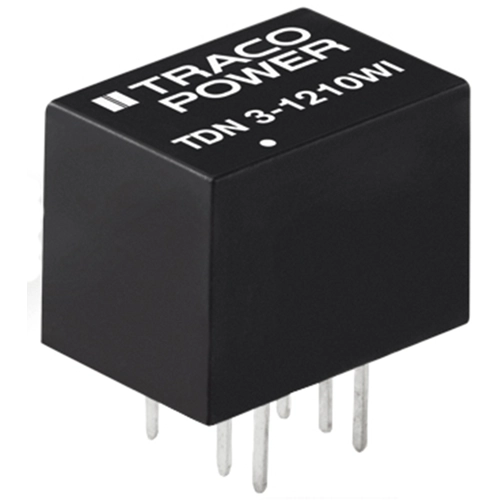

TDN 3-1211WI TRACO POWER DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
23.4906 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
23.49 € *
Price list
Quantity
Price per unit*
1 pcs.
23.4906 €
10 pcs.
21.1344 €
*incl. VAT plus shipping costs
Subject to prior sale

DC/DC Converter, TDN 3-1211WI, TRACO POWER

The TDN 3-1211WI is a 3 W fully regulated, high performance DC/DC converter. It comes in a compact cubical package of only 1.23 cm³. Full load operation is reliable up to 70°C environment temperature.

Features

  • Fully regulated outputs
  • Remote On/Off control
  • Short-circuit protection
Technical specifications
Number of outputs 1
Output current 600 mA
Output voltage DC 5 VDC
Input voltage AC 4.5-18 VDC
Power 3 W
efficiency 80 %
Design DIP8
Isolation voltage 1.6 kV
Length 13.2 mm
Width 9.1 mm
Height 10.2 mm
Logistics
Country of origin TW
Customs tariff number 85044095
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
