TDL 3-2423 | TRACO POWER
DC converter, 18-36 VDC, 3 W, 2 outputs, ±15 VDC, 87 % efficiency, TDL 3-2423
Unit Price (€ / pc.)
23.4430 € *
Available in 10 days: 160 pcs. - if ordered today
Total Price:
23.44 € *
Price list
Quantity
Price per unit*
1 pcs.
23.4430 €
10 pcs.
21.0987 €
*incl. VAT plus shipping costs
Subject to prior sale

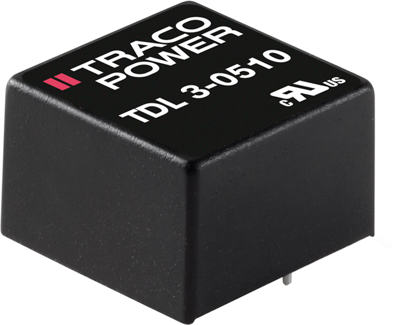

DC/DC converters, Traco TDL 3-2423
The TDL 3 series with 2:1 input voltage range is a selection of 3 Watt regulated dc/dc-converters. They come in a very compact DIP package (0.55 x 0.55 x 0.31 inch).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 2 | |
| Output current | 100 mA | |
| Output voltage DC | ±15 VDC | |
| Input voltage AC | 18-36 VDC | |
| Power | 3 W | |
| efficiency | 87 % | |
| Design | DIP7 | |
| Isolation voltage | 1.5 kV | |
| Length | 14 mm | |
| Width | 14 mm | |
| Height | 8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
