TXN 50-103 | TRACO POWER

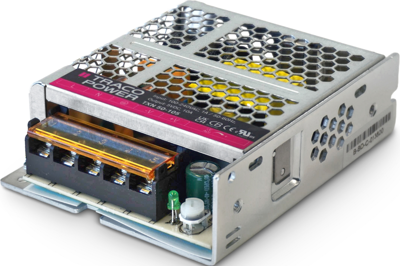

Switching power supply, 3.3 VDC, 10 A, 33 W, TXN 50-103
Unit Price (€ / pc.)
15.8746 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
15.87 € *
Price list
Quantity
Price per unit*
1 pcs.
15.8746 €
5 pcs.
14.2919 €
*incl. VAT plus shipping costs
Subject to prior sale
AC/DC Industrial power supply, TXN 50-103, TRACO POWER
The new TXN line comprises a of cost efficient, metal enclosed AC/DC power supply and is designed for industrial applications. With a low-profile metal case and screw terminal block connection, It is easy to install in any equipment. The TXN 50 power supply is completely convection cooled. Internal EMC filter, high IO-isolation and wide temperature range qualify them for numerous industrial applications. This power supply have universal input and comply with the latest industrial standard IEC/EN/UL 62368-1, European EMC standards and the Low Voltage Directive (LVD).
Features
- Compact metal case with screw terminal block
- High efficiency up to 86%
- Short circuit, overvoltage and overload protection
Technical specifications
| Length | 99 mm | |
| Width | 82 mm | |
| Depth | 30 mm | |
| Number of outputs | 1 | |
| Input voltage AC | 90-264 VAC/140-340 VDC | |
| Output current | 10 A | |
| Output voltage DC | 3.3 VDC | |
| efficiency | 84 % | |
| Power | 33 W |
Download
Logistics
| Customs tariff number | 85044083 |
| Country of origin | CN |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
