TXN 25-112 | TRACO POWER
AC/DC power supply, 12 VDC, 2.1 A, 25 W, TXN 25-112
Unit Price (€ / pc.)
13.8992 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
13.90 € *
Price list
Quantity
Price per unit*
1 pcs.
13.8992 €
5 pcs.
13.2090 €
10 pcs.
12.5545 €
50 pcs.
11.9238 €
*incl. VAT plus shipping costs
Subject to prior sale

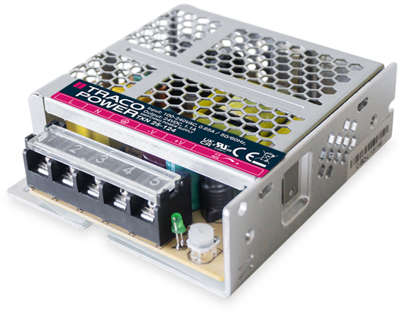

AC/DC Power Supply, TXN 25-112, TRACO POWER
The TXN 25 is a cost efficient, metal enclosed AC/DC power supplies series and is designed for industrial applications. With a low-profile metal case and screw terminal block connection, they are easy to install in any equipment. The TXN 25 power supplies are completely convection cooled and internal EMC filter, high IO-isolation and wide temperature range qualify them for numerous industrial applications. All models within the TXN 25 series have universal input (90-264 VAC) and comply with the latest industrial standard IEC/EN/UL 62368-1, European EMC standards and the Low Voltage Directive (LVD).
Features
- Compact metal case with screw terminal block
- High efficiency up to 86%
- Short circuit, overvoltage and overload protection
Technical specifications
| Input voltage AC | 90-264 VAC/140-340 VDC | |
| Output current | 2.1 A | |
| efficiency | 82 % | |
| Depth | 30 mm | |
| Number of outputs | 1 | |
| Output voltage DC | 12 VDC | |
| Power | 25 W | |
| Width | 82 mm | |
| Length | 99 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85044083 |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
