TXN 150-148 | TRACO POWER
AC/DC power supply, 48 VDC, 3.2 A, 150 W, TXN 150-148
Unit Price (€ / pc.)
45.3509 € *
Available: 5 pcs.
Available in 7 Days: 225 pcs. - if ordered today
Total Price:
45.35 € *
Price list
Quantity
Price per unit*
1 pcs.
45.3509 €
5 pcs.
43.0780 €
10 pcs.
40.9241 €
50 pcs.
38.8773 €
*incl. VAT plus shipping costs
Subject to prior sale

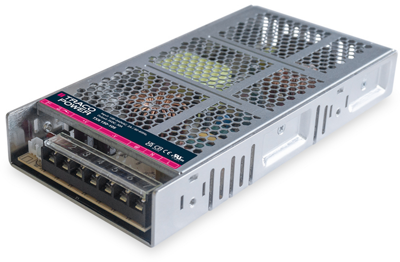

AC/DC Power Supply, TXN 150-148, TRACO POWER
The TXN 150 is a cost efficient, metal enclosed AC/DC power supplies series and is designed for industrial applications. With a low-profile metal case and screw terminal block connection, they are easy to install in any equipment. Active PFC (>0.9), internal EMC filter, high IO-isolation and wide temperature range qualify them for numerous industrial applications. All models within the TXN 150 series have universal input (90-264 VAC) and comply with the latest industrial standard IEC/EN/UL 62368-1, European EMC standards and the Low Voltage Directive (LVD).
Features
- Compact metal case with screw terminal block
- Active power factor correction >0.9
- High efficiency up to 90%
- Short circuit, overvoltage and overload protection
- Remote ON/OFF function
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 99 mm | |
| Power | 150 W | |
| Length | 199 mm | |
| Input voltage AC | 90-264 VAC/140-340 VDC | |
| Output current | 3.2 A | |
| efficiency | 90 % | |
| Number of outputs | 1 | |
| Output voltage DC | 48 VDC | |
| Depth | 30 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85044083 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
