TXN 100PF-115 | TRACO POWER
AC/DC power supply, 15 VDC, 6.7 A, 100 W, TXN 100PF-115
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
41.3882 € *
Available: 4 pcs.
Available in 7 Days: 91 pcs. - if ordered today
Total Price:
41.39 € *
Price list
Quantity
Price per unit*
1 pcs.
41.3882 €
5 pcs.
39.3176 €
10 pcs.
37.3541 €
50 pcs.
35.4858 €
*incl. VAT plus shipping costs
Subject to prior sale

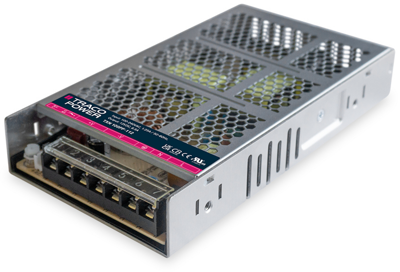

AC/DC Power Supply, TXN 100PF-115, TRACO POWER
The TXN 100PF is a cost efficient, metal enclosed AC/DC power supplies series and is designed for industrial applications. With a low-profile metal case and screw terminal block connection, they are easy to install in any equipment. Active PFC (>0.9), internal EMC filter, high IO-isolation and wide temperature range qualify them for numerous industrial applications. All models within the TXN 100PF series have universal input (90-264 VAC) and comply with the latest industrial standard IEC/EN/UL 62368-1, European EMC standards and the Low Voltage Directive (LVD).
Features
- Compact metal case with screw terminal block
- Active power factor correction >0.9
- High efficiency up to 89%
- Short circuit, overvoltage and overload protection
- Remote ON/OFF function
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 6.7 A | |
| Output voltage DC | 15 VDC | |
| Input voltage AC | 90-264 VAC/140-340 VDC | |
| Power | 100 W | |
| efficiency | 89 % | |
| Length | 179 mm | |
| Width | 99 mm | |
| Depth | 30 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
