TXN 100-148 | TRACO POWER
Switching power supply, 48 VDC, 2.2 A, 105 W, TXN 100-148
Unit Price (€ / pc.)
20.6346 € *
Available: 3 pcs.
Available in 7 Days: 107 pcs. - if ordered today
Total Price:
20.63 € *
Price list
Quantity
Price per unit*
1 pcs.
20.6346 €
5 pcs.
18.5759 €
*incl. VAT plus shipping costs
Subject to prior sale

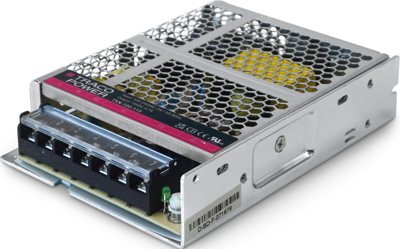

AC/DC Industrial power supply, TXN 100-148, TRACO POWER
The new TXN line comprises a of cost efficient, metal enclosed AC/DC power supply and is designed for industrial applications. With a low-profile metal case and screw terminal block connection, It is easy to install in any equipment. The TXN power supply is completely convection cooled. Internal EMC filter, high IO-isolation and wide temperature range qualify them for numerous industrial applications. This power supply have universal input and comply with the latest industrial standard IEC/EN/UL 62368-1, European EMC standards and the Low Voltage Directive (LVD).
Features
- Compact metal case with screw terminal block
- High efficiency up to 86%
- Short circuit, overvoltage and overload protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 97 mm | |
| Power | 105 W | |
| Length | 129 mm | |
| Input voltage AC | 90-264 VAC/140-340 VDC | |
| Output current | 2.2 A | |
| efficiency | 86 % | |
| Number of outputs | 1 | |
| Output voltage DC | 48 VDC | |
| Depth | 30 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85044083 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
