TXLN 018-124 | TRACO POWER
Power supply, 24 VDC, 750 mA, 18 W, TXLN 018-124
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
27.0368 € *
Available: 5 pcs.
Available in 7 Days: 191 pcs. - if ordered today
Total Price:
27.04 € *
Price list
Quantity
Price per unit*
1 pcs.
27.0368 €
10 pcs.
24.3236 €
*incl. VAT plus shipping costs
Subject to prior sale

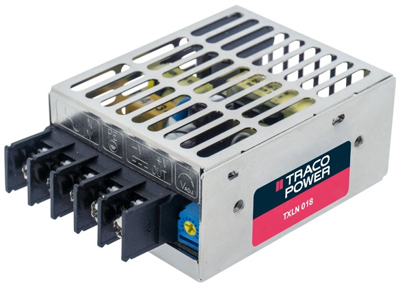

Power supply, TXLN 018-124, Traco
AC/DC-power supply 24 VDC, 0.75 A, metal case. This is an encased power supply designed for a wide range of cost critical applications. With a low profile metal case and screw terminal block connection, it is easy to install in any equipment.
Features
- Convection cooled (no-fan)
- High efficiency up to 85 %
- Short circuit, overvoltage and overload protection
- Universal input 85-264 VAC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 750 mA | |
| Output voltage DC | 24 VDC | |
| Input voltage AC | 85-264 VAC/120-375 VDC | |
| Power | 18 W | |
| efficiency | 85 % | |
| Length | 62 mm | |
| Width | 50.8 mm | |
| Depth | 28 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
