TXL 035-0512D | TRACO POWER

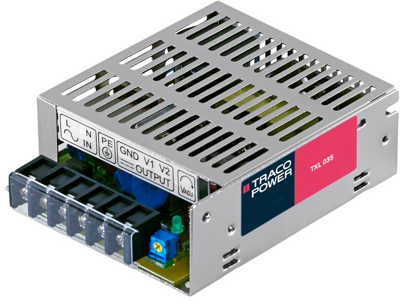

Switching power supply, 5/12 VDC, 4 A, 35 W, TXL 035-0512D
Power supplies, type Traco TXL.
In compact metal enclosure with screw terminals, short-circuit and overvoltage protection; Input voltage range: 85 to 264 VAC/120 to 375 VDC, 50 to 60 Hz. Output voltage: ±10 % (with potentiometer). Residual ripple: 1.0 % (20 MHz BW). Interference suppression: EN 55022 class B and FCC (Level B), EN 61000-3. Immunity to interference: EN 61000-4. Current limiting: 105 to 150 % (foldback, automatic restart). Overvoltage protection: 115 to 140 %. Efficiency: 70 to 84 % typically. Operating temperatures: –10 to +70 °C. MTBF: 250000. h at +25 °C.
With several outputs, type TXL.
Control error: on input fluctuation max. 1.0 %, on load fluctuation max. 4.0/6.0 % (master output/output 2 and 3).
Technical attributes (type, output power, number of outputs, output voltage, output current): TXL 035-0512D, 35 W, 2 x OUT, +5.0 VDC/4.0 A, +12 VDC/2.5 A
| Filter | Property | Value |
|---|---|---|
| Depth | 82 mm | |
| Number of outputs | 2 | |
| Input voltage AC | 88-264 VAC/127-375 VDC | |
| Width | 35 mm | |
| Output voltage DC | 5/12 VDC | |
| efficiency | 79 % | |
| Power | 35 W | |
| Length | 99 mm | |
| Output current | 4 A |
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044095 |
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
