TXL 025-15S | TRACO POWER

Power supply, 15 VDC, 1.7 A, 25 W, TXL 025-15S

Order No.: 25K5694
MPN:
TXL 025-15S
Series: TXL

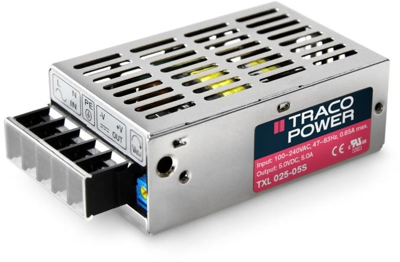

TXL 025-15S TRACO POWER Built-In Power Supplies Image 1
TXL 025-15S TRACO POWER Built-In Power Supplies Image 2
Image may differ
Unit Price (€ / pc.)
44.1014 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
441.01 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
44.1014 €

AC/DC Power Supply, TXL 025-15S, TRACO POWER

The TXL 025-15S is an encased power supply designed for a wide range of cost critical applications. With a low profile metal case and screw terminal block connection, it is easy to install in any equipment.

Features

  • Short circuit and over voltage protection
  • International safety approvals

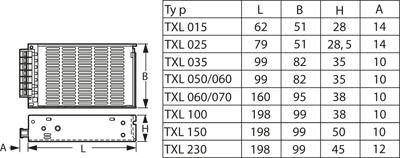

Technical specifications
Width 28.5 mm
Length 79 mm
Power 25 W
efficiency 85 %
Number of outputs 1
Output current 1.7 A
Output voltage DC 15 VDC
Depth 51 mm
Input voltage AC 88-264 VAC/125-375 VDC
Logistics
Customs tariff number 85044083
Country of origin TW
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
