TXH 240-148 | TRACO POWER
Power supply, 48 VDC, 5 A, 240 W, TXH 240-148
Unit Price (€ / pc.)
150.416 € *
Available in 7 Days: 90 pcs. - if ordered today

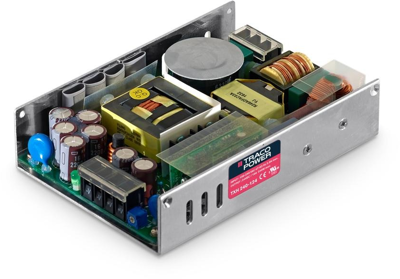

AC/DC Power Supply, TXH 240-148, TRACO POWER
The TXH 240-148 is a power supply in a metal enclosure, designed for a wide range of cost critical applications. It is equiped with screw terminal blocks and is easy to install in any equipment.
Features
- High efficiency
- Active power factor correction
- Short circuit and over voltage protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 35 mm | |
| Length | 150 mm | |
| efficiency | 93 % | |
| Output current | 5 A | |
| Width | 106 mm | |
| Number of outputs | 1 | |
| Power | 240 W | |
| Output voltage DC | 48 VDC | |
| Input voltage AC | 90-264 VAC/120-370 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
