TXH 240-112 | TRACO POWER

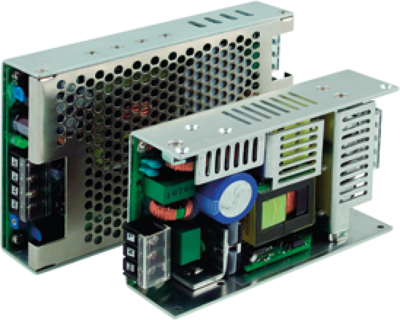

Switching power supply, 12 VDC, 20 A, 240 W, TXH 240-112
Unit Price (€ / pc.)
142.4192 € *
Available in 7 Days: 75 pcs. - if ordered today
Total Price:
142.42 € *
Price list
Quantity
Price per unit*
1 pcs.
142.4192 €
10 pcs.
128.1868 €
*incl. VAT plus shipping costs
Subject to prior sale
Power supplies, type Traco TXH.
Compact power supply in U-angle design, 360 W models in metal enclosure, short-circuit and overvoltage protection; Input voltage range: 90 to 264 VAC/120 to 370 VDC, 47 to 63 Hz. Control error: input fluctuation max. 1.0 %, load fluctuation max. 1.0 %. Efficiency: 91 %. Operating temperatures: - 10 to +70 °C. Certifications: cULus, CB.
Output power 240 W, type TXH 240.
Dimensions: 150 x 35 x 106 mm.
Technical attributes (type, rated output voltage, output current (max.)): TXH 240-112, 12 VDC, 20 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Depth | 35 mm | |
| Power | 240 W | |
| Output voltage DC | 12 VDC | |
| efficiency | 90 % | |
| Output current | 20 A | |
| Number of outputs | 1 | |
| Length | 150 mm | |
| Width | 106 mm | |
| Input voltage AC | 90-264 VAC/120-370 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
